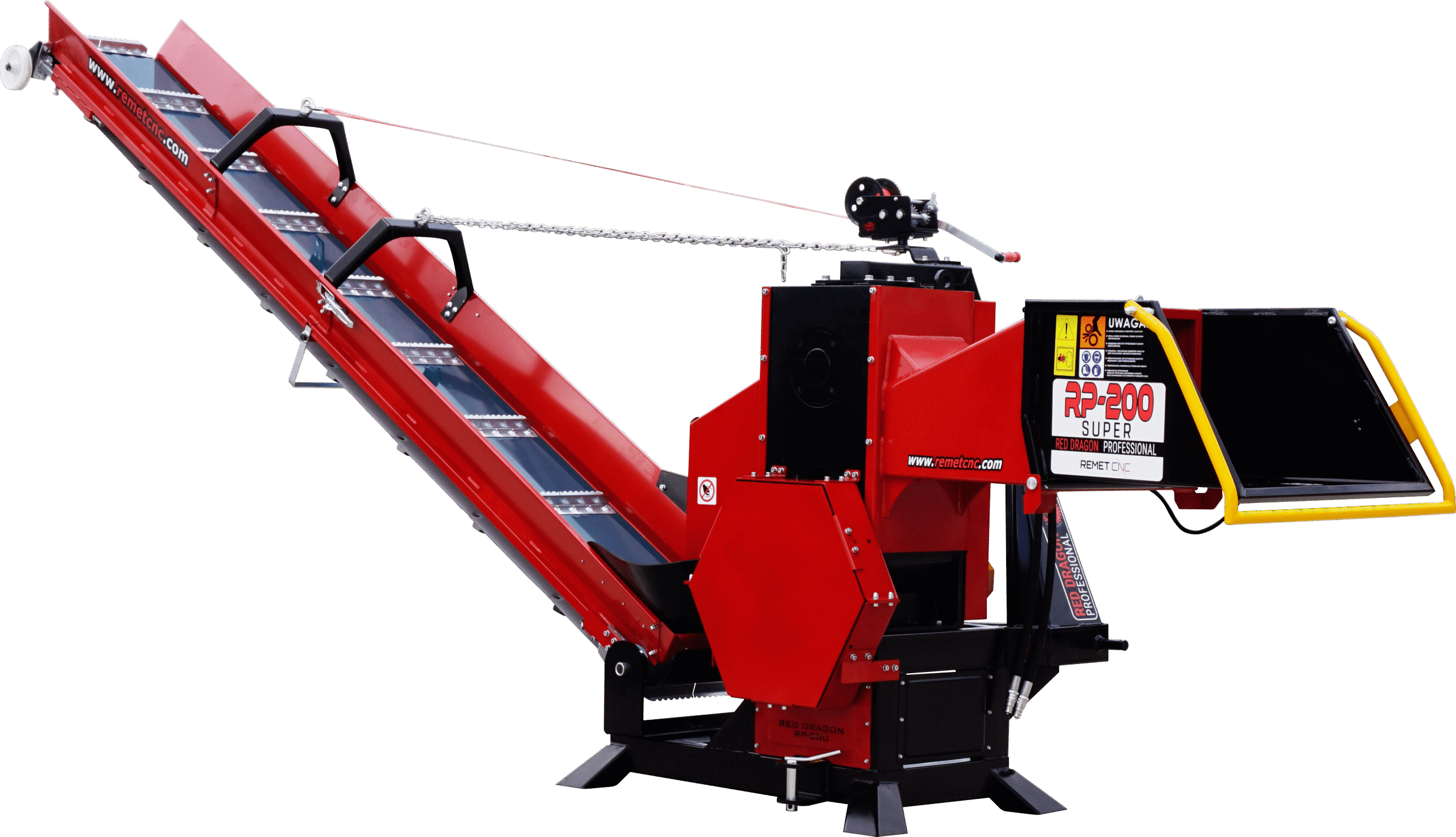

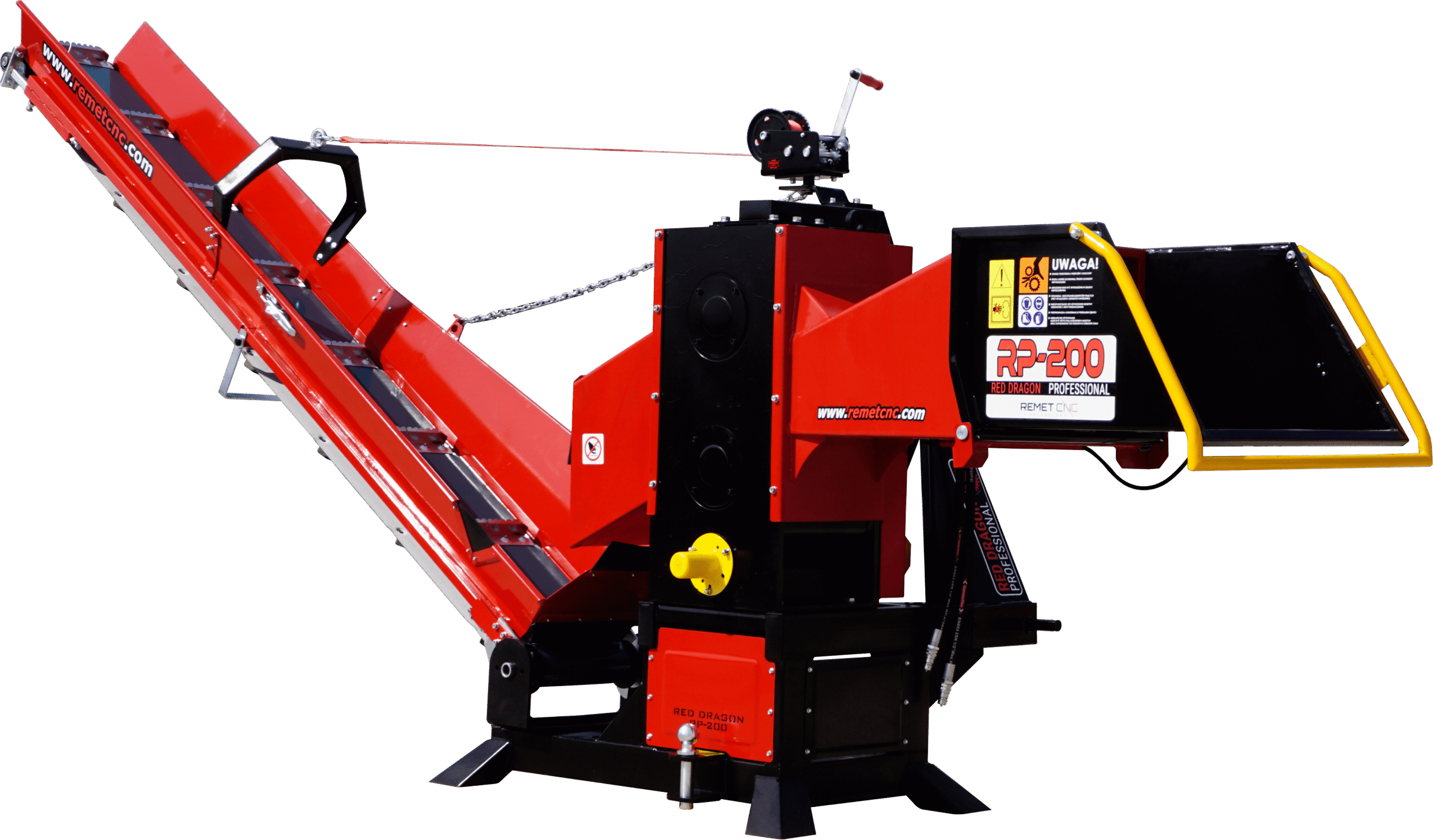

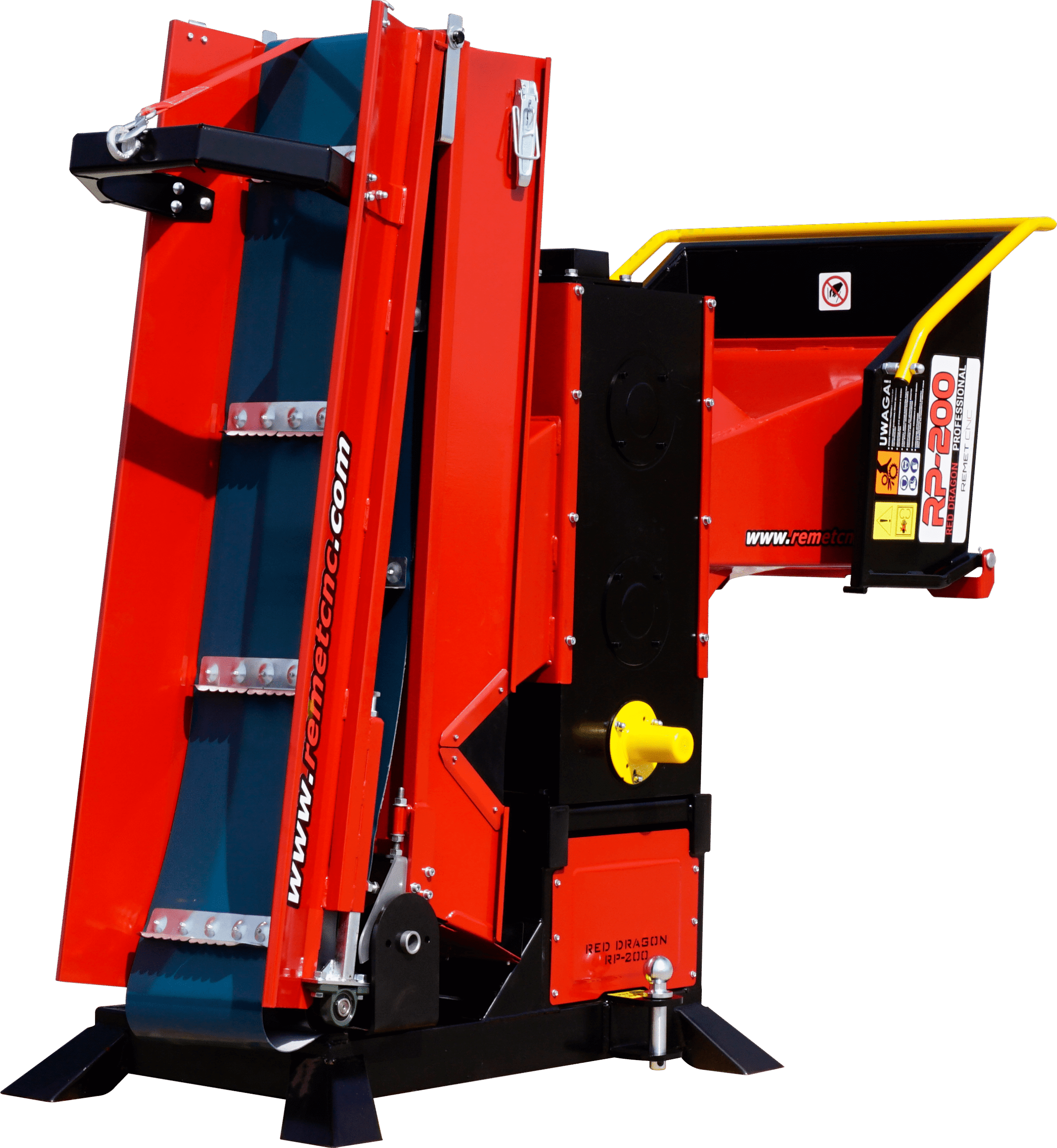

Branch Logger RP200 + Conveyor
£6,275.00
Technical data
- Minimum power for the PTO drive 70 HP
- Number of cutters 6
- Recommended PTO drive speed about 540 rpm
- Direction of rotation of the PTO roller right hand
- Max. cutting diameter of branches:
- fresh and soft wood 160 mm
- fresh and hard wood 150 mm
- dry and hard wood 140 mm
- Length of cutting of chips:
- 6 blades 18-30 cm
- Maximum efficiency18 m3/h
- The internal width of the cutting mechanism 300 mm
- Manufacturing of cutters HARDOX steel type 500
- Thickness of cutters15 mm
- Diameter of gears (induction hardened)340 mm
- Hopper (dimensions) 620/380 mm
- Chipper attachment system Three-point linkage
- Trailer attachment: towing power 1000 kg
- Weight 620 kg
Branch logger has:
- PTO shaft with slip clutch
- Fly wheel RP200
- Hydraulic conveyor 3m
Description
RED DRAGON RP-200 PROFESSIONAL roller chopper is designed for cutting branches with a diameter of up to 16 cm, completely designed and developed by REMET CNC TECHNOLOGY. The frame is made of metal sections of wide spacing of support, expandable extended inlet hopper of high rigidity and reinforced with a section. The chopper is fitted with safety switch around the inlet hopper (safety switch should be connected with emergency module in the tractor). Cutting mechanisms manufactured precisely on CNC machining centre from one assumption to provide proper quality, accuracy and axis alignment which translates into long service life of sub-assemblies and the entire device. The mechanism is fitted with an expanding and clamping sleeve which serves for the positioning of cutting blades, and also performs a function of overload protection.
